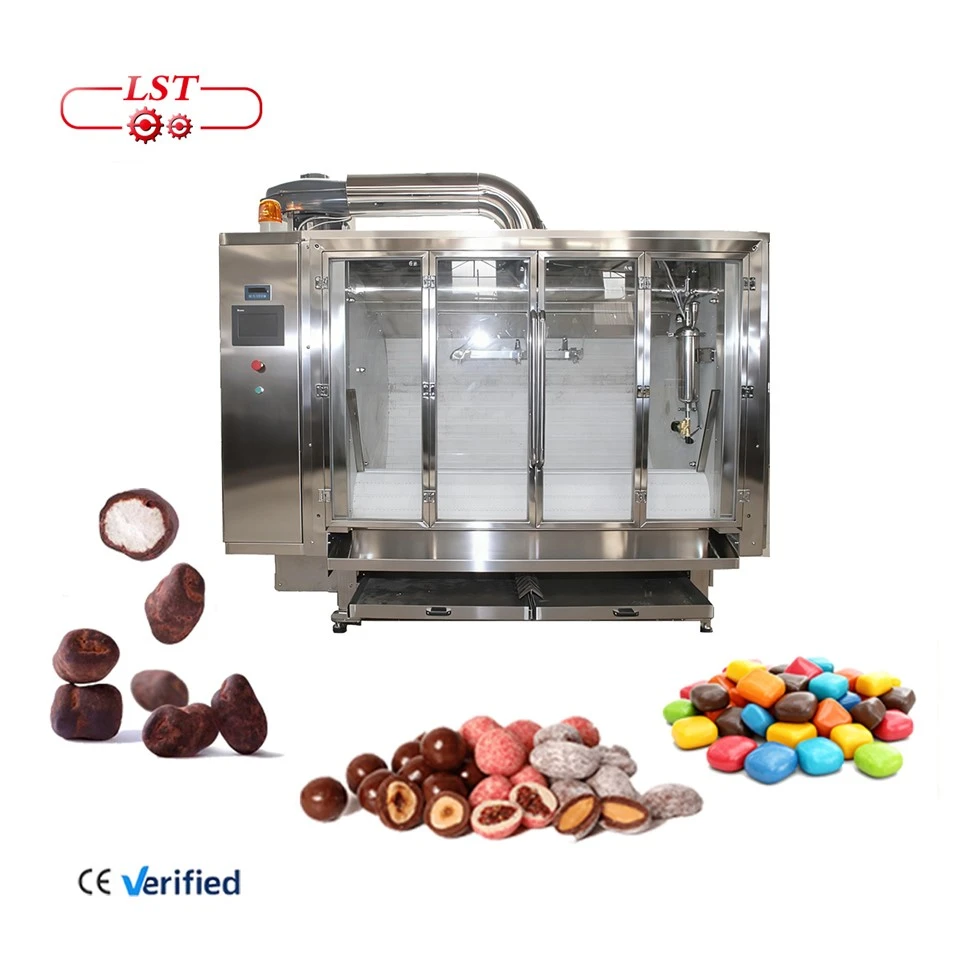

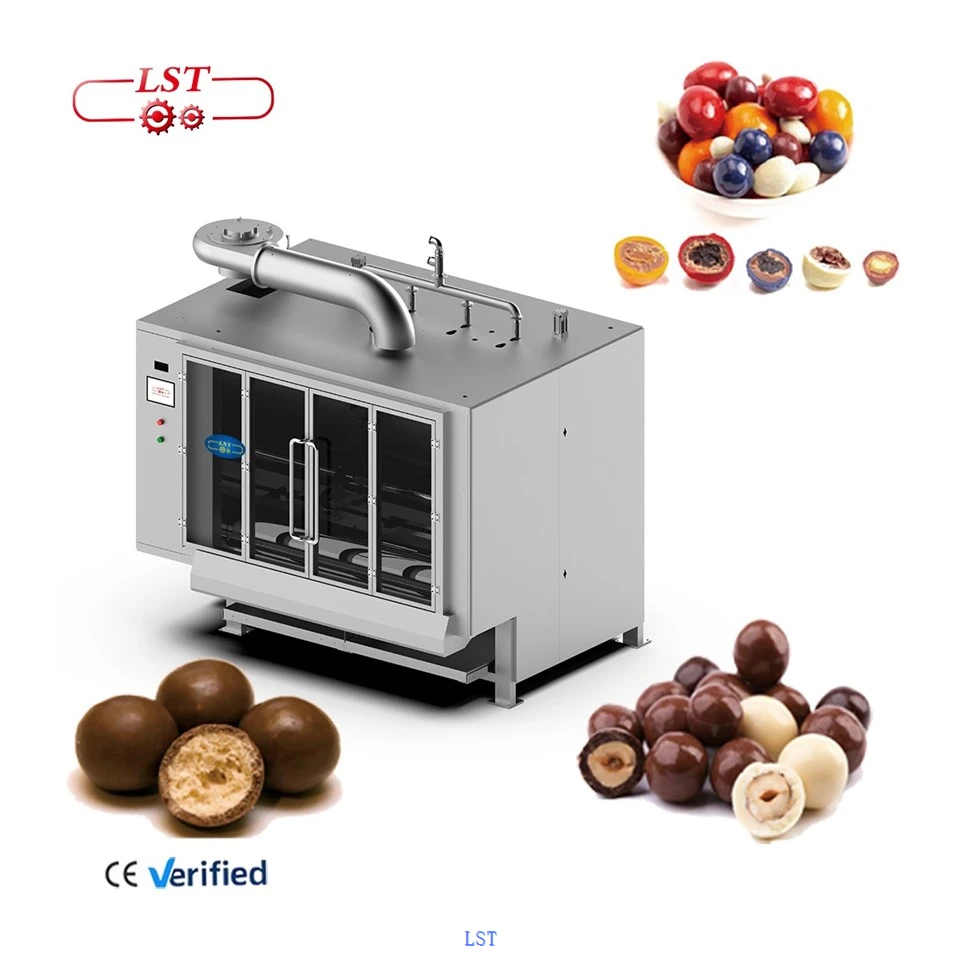

Muaj Chocolate Belt Coater & Chocolate Txheej Tshuab
Chengdu LST Science thiab Technology Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg uas muaj chocolate siv coater & chocolate txheej tshuab nyob rau hauv Suav teb, kuj txhawb kev pab customized. Txais tos mus yuav cov khoom lag luam zoo chocolate siv coater & chocolate txheej tshuab rau muag ntawm no los ntawm peb lub hoobkas. Yog tias koj muaj lus nug txog cov qauv dawb, thov koj xav email rau peb.
Covchocolate siv txheej tshuabintegrates chocolate spraying, siv conveying, txias, thiab polishing rau hauv ib qho compact system. Nws yog dav siv nyob rau hauv cov kws tshaj lij chocolate factories thiab zaub mov ua zaub mov.
Rau cov neeg siv khoom tshawb nrhiav achocolate txheej tshuab kev muag khoomnrog CE daim ntawv pov thawj thiab cov zis ruaj khov, cov qauv no yog qhov kev xaiv zoo tshaj plaws.
Qhov zoo tshaj plaws tam sim no -muag nqi yog25800USD
Khoom Description
Kev siv dav
Lub tshuab no txhawb nqa ntau yam khoom thiab txheej txheej, ua rau nws haum rau ob qho tib si kev lag luam thiab ib nrab -kev lag luam ntau lawm:
Chocolate-coated almonds, peanuts, hazelnuts
Qab zib-coated txiv ntseej thiab dragees
Raisins, berries, txiv hmab txiv ntoo qhuav
Biscuits thiab lub zog bar suav nrog
Khoom qab zib centers, jelly taum
Tsis zoo li ib chocolate txheej tshuab rau tsev,cov txheej txheem no yog tsim los rau kev tsim khoom tas mus li thiab kev tswj xyuas kom zoo, ua rau nws zoo tagnrho rau kev xa tawm - cov chaw tsim khoom noj khoom haus.
Precision siv tsim ntawm lubchocolate txheej sivUa kom cov khoom txav tau yooj yim yam tsis muaj nplaum lossis deformation.
Txheej txheem ntau lawm
1. Raw Khoom noj
Txiv ntseej, biscuits, los yog txiv hmab txiv ntoo qhuav yog sib npaug rau hauv txoj siv sia
2. Chocolate txheej
Chocolate yog sprayed uniformly thaum cov khoom txav ntawm lubchocolate siv coater
3. Txias & Solidification
Tswj kub thiab airflow stabilize lub txheej txheej
4. Txheej txheem polishing
Ntog gloss thiab smoothness zoo dua
5. Qhov ntau thiab tsawg batch tso zis
ruaj khov ntau lawm haum rau industrial scale
Ntsiab nta & qhov zoo
Uniform Txheej Performance
Advanced siv txoj siv kom ntseeg tau tias txawm tias chocolate faib
Integrated Cooling System
7HP cua txias txhawb nqa cua kub thiab txias
PLC & HMI Control System
DELTA PLC xyuas kom meej kev ua haujlwm thiab hloov daim ntawv qhia yooj yim
Khoom noj khoom haus-Qib Stainless Hlau
SUS304 qauv, tu yooj yim, kev pab lub neej ntev
Zog txuag & ruaj khov
High -cov khoom zoo los ntawm Schneider, Delta, thiab SMC
CE tau lees paub
Ua tau raws li kev nyab xeeb thoob ntiaj teb thiab cov qauv tsim khoom noj
Rau cov neeg yuav khoom nrhiav hauv online rau lub tshuab chocolate txheej txhim khu kev qha rau kev muag khoom, tus qauv no muaj qhov sib npaug zoo ntawm kev ua tau zoo, ua haujlwm ntev, thiab tus nqi -kev ua tau zoo.Kev ceev faj rau kev siv

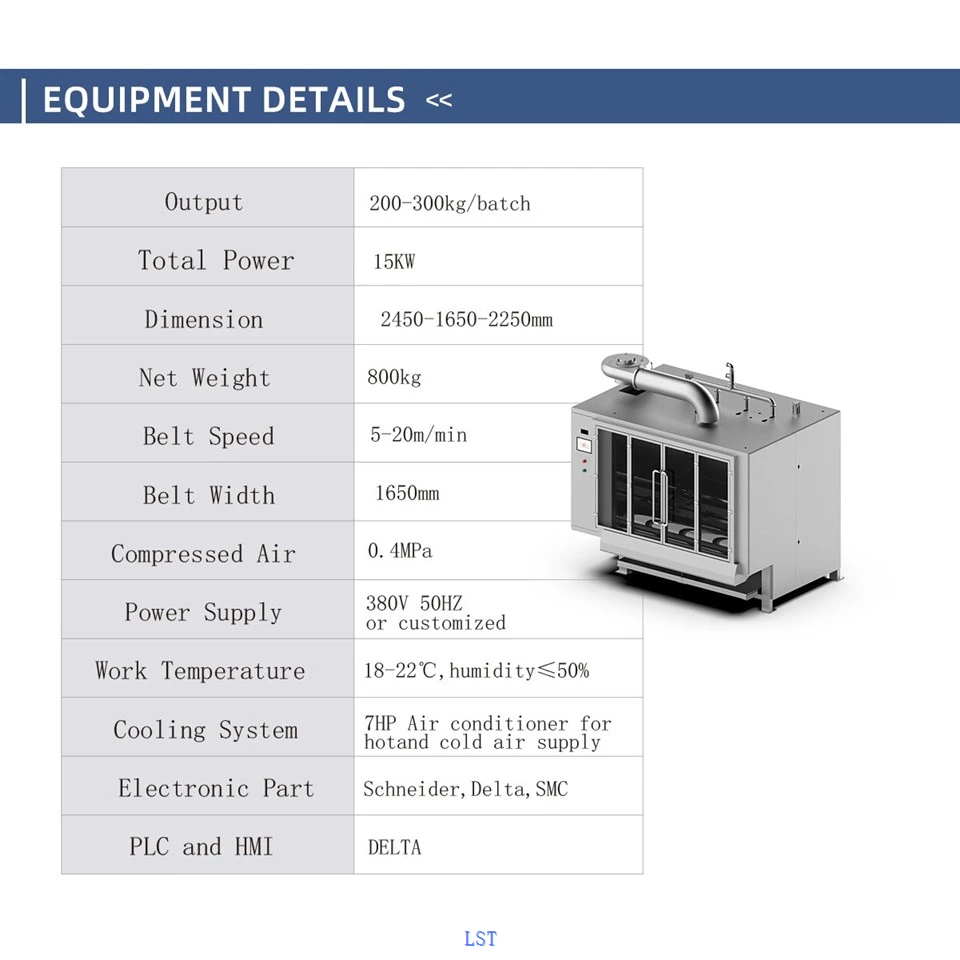

Technical Specifications
| Yam khoom | Specification |
|---|---|
| Tso zis | 200-300 kg / batch |
| Tag Nrho Lub Zog | 15 kWm |
| Dimension | 2450 × 1650 × 2250 hli |
| Net nyhav | 800 kg |
| Siv ceev | 5-20m / min |
| Siv dav | 1650 hli |
| Compressed Cua | 0.4MPa siab |
| Fais fab mov | 380V / 50Hz (customizable) |
| Ua haujlwm kub | 18-22 degree, Humidity Tsawg dua lossis sib npaug li 50% |
| Txias System | 7HP cua txias |
| Cov khoom siv hluav taws xob | Schneider, Delta, SMC |
| PLC & HMI | DELTA |
Cov neeg siv khoom
Qhov nochocolate siv coatertau ua tiav tiav hauv cov chaw tsim khoom lag luam chocolate thiab cov txiv ntoo ua cov nroj tsuag thoob plaws ntau lub tebchaws. Cov neeg siv khoom muaj nuj nqis rau nws txoj haujlwm ruaj khov, kev saib xyuas yooj yim, thiab kev hloov pauv rau cov zaub mov txawv chocolate.
Hauv -qhov chaw teeb tsa, commissioning, thiab kev cob qhia neeg ua haujlwm tau muab. Piv nrog rau kev nkag - theem kev daws teeb meem zoo li achocolate txheej tshuab rau tsev, cov cuab yeej no muab kev ua tau zoo dua thiab ntev - kev cia siab rau kev siv lag luam.
-
5K +Ua tiav Cov Haujlwm5k ua tiav kev ua haujlwm
-
30 +Peb tus kws tshaj lijTus kws tshaj lij Flooring neeg ua haujlwm
Vim li cas thiaj xaiv Chocolate Txheej Tshuab?
-
Pov thawj kev ua tau zoo nyob rau hauv lub Hoobkas ib puag ncig
CE- tau ntawv pov thawj rau kev lag luam thoob ntiaj teb
-
Flexible configuration rau cov khoom sib txawv
Haum rau chocolate, qab zib, thiab ntau- txheej txheej
-
Flexible configuration rau
cov khoom sib txawv
Kev tshaj lij tom qab- kev muag khoom thiab kev txhawb nqa txawm hais tias koj tab tom hloov kho cov kab uas twb muaj lawm lossis nrhiav tus tshiabchocolate txheej tshuab kev muag khoom, qhov nochocolate siv txheej tshuabyog tsim los kom tau raws li niaj hnub confectionery ntau lawm xav tau.
Peb cov khoom thiab khoom siv
Haum rau
Chocolate manufacturers
Confectionery factories
Txiv ntseej thiab txiv hmab txiv ntoo qhuav processors
Khoom noj khoom haus OEM / ODM cov nroj tsuag
Export- cov kab ntau lawm cov khoom noj
